Render 3D Elements

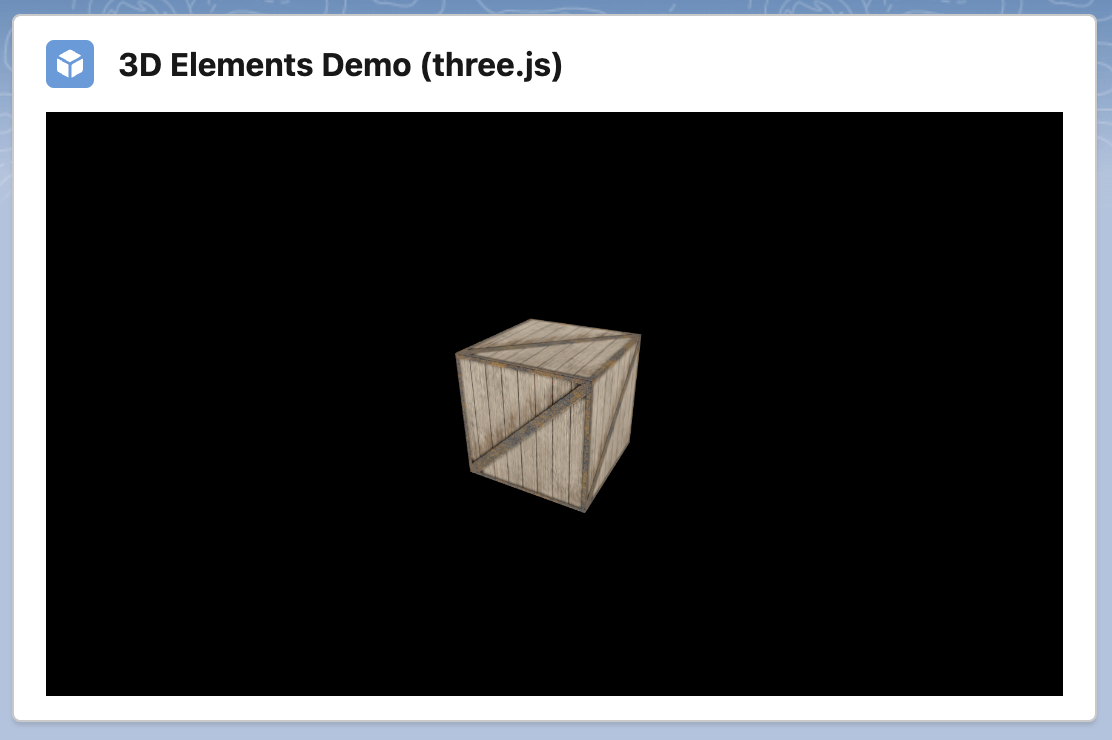

A 3D viewer for glTF and GLB models using Three.js. Without a model, it shows a rotating crate.

Type: Component

Available in: App Page · Home Page · Record Page · Flow Screen

Read on Medium

How to Render 3D Elements with Lightning Web Components

Attributes

Name	Type	Default	Description
background-color	string	''	Background color of the scene as a CSS color, e.g. '#f3f3f3' or 'white'. Without it, the background is black.
card-icon	string	'custom:custom57'	If show card option is active, the card icon is displayed in the header before the card title. It should contain the SLDS name of the icon. Specify the name in the format 'utility:down' where 'utility' is the category and 'down' the icon to be displayed.
card-title	string	'3D Viewer'	If show card option is active, the card title can include text and is displayed in the header above the viewer.
disable-rotation	boolean	false	If present, the model doesn't rotate on its own.
enable-controls	boolean	false	If present, the model can be rotated with the mouse or touch, zoomed with the wheel and moved with the right mouse button.
height	string	'400px'	Height of the viewer, e.g. '400px'. The width follows the container.
model-url	string	''	URL of a glTF or GLB model, e.g. of a static resource: '/resource/carModel'. Without it, the viewer shows a crate.
show-card	boolean	false	If present, the viewer is wrapped in a lightning card to fit better into the overall page layout.

Usage

<c-render3-d-elements-three-j-s
  model-url="/resource/carModel"
  enable-controls
  background-color="#f3f3f3"
  height="500px"
  show-card
></c-render3-d-elements-three-j-s>

Upload the model as a static resource and set its URL, /resource/<name>, in the Model URL property of the Lightning App Builder. The viewer centers the model, lights it and moves the camera so that the whole model is visible. With enable-controls, the mouse pointer turns into a hand over the model. If Three.js or the model cannot be loaded, or the browser has no WebGL, it shows an error message.

• Use a GLB file, or a glTF file with its .bin and textures zipped into one static resource, e.g. /resource/carModel/scene.gltf. A glTF with its data embedded as data: URIs doesn't load, because the Content Security Policy of Lightning blocks them.
• Files attached to a record can't be shown: Salesforce serves them from its file domain, which the browser doesn't allow the viewer to read.

Building Three.js

The threejs static resource is Three.js 0.186.1 bundled with GLTFLoader and OrbitControls into one script that sets the global THREE. To update it, install three and esbuild outside the project and bundle this entry file:

import * as three from 'three';
import { GLTFLoader } from 'three/examples/jsm/loaders/GLTFLoader.js';
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls.js';

globalThis.THREE = { ...three, GLTFLoader, OrbitControls };

npx esbuild entry.js --bundle --minify --format=iife --target=es2020 --legal-comments=none --outfile=threejs.js

Custom Labels

The texts users see are Custom Labels, so they can be translated in Setup with the Translation Workbench. Copy them together with the component.

Name	Value
ErrorAlert_Error	Error
ErrorUtils_UnknownError	Unknown error
Render3DElementsThreeJS_ErrorWithoutReason	{0}.
Render3DElementsThreeJS_ErrorWithReason	{0}:
Render3DElementsThreeJS_ModelNotLoaded	The 3D model could not be loaded
Render3DElementsThreeJS_SceneNotDisplayed	The 3D scene could not be displayed

Component Dependencies

Name	Type	Description
labelUtils	LWC	Shared function to fill the placeholders of Custom Labels.
threejs	Static Resource	Three.js 0.186.1 with GLTFLoader and OrbitControls - Lightweight, cross-browser 3D library using WebGL.
crateMaterial	Static Resource	Texture of the crate shown without a model.
errorAlert	LWC	Inline alert that shows error messages to the user.
errorUtils	LWC	Shared functions to read error messages and show error toasts.
