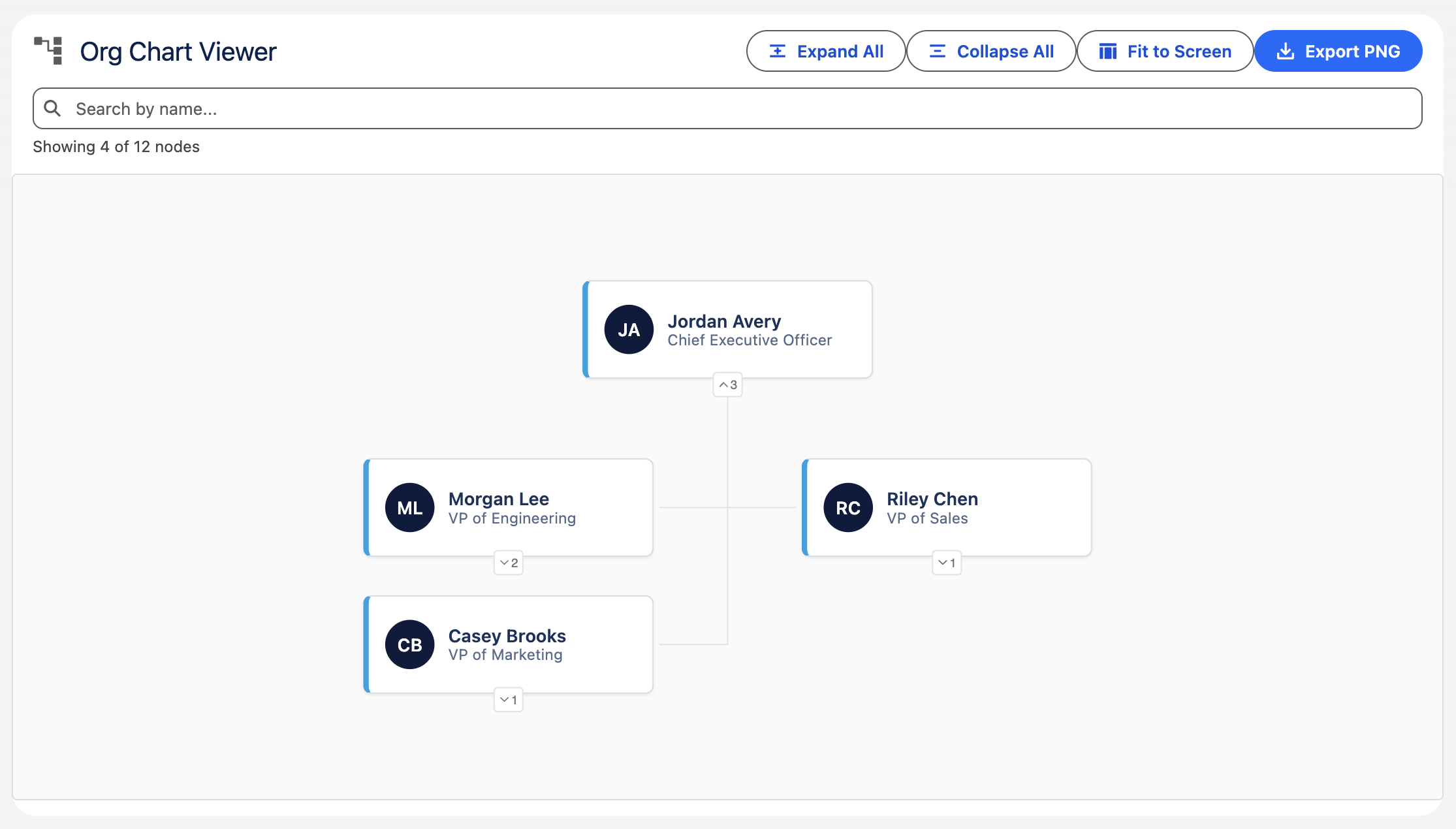

Org Chart Viewer

An interactive organization chart with search, expand/collapse and PNG export, powered by the d3-org-chart library. It loads the records of any object with a parent field itself, e.g. users and their managers, takes your own hierarchy via the records attribute, or shows a small demo dataset.

Type: Component

Available in: App Page · Home Page · Record Page

Attributes

Name	Type	Default	Description
image-field	string		API name of the field with an image URL shown instead of the initials, e.g. 'SmallPhotoUrl'.
name-field	string	'Name'	API name of the field shown as the name of a node.
chart-object-api-name	string		API name of the object whose records the chart loads, e.g. 'User' or 'Contact'. Used together with parent-field-api-name; records set from outside take precedence.
parent-field-api-name	string		API name of the field with the parent record, e.g. 'ManagerId', 'ReportsToId' or 'ParentId'.
record-id	string		Id of the record of the record page, filled automatically there.
records	Array	[]	Flat list of records to render as a tree. Each record needs an id (or Id) and a parentId (or ManagerId), plus a name and title.
root-record-id	string		Id of the record the chart starts from. Without it, the chart starts from the record of the record page, if it is among the loaded records, or else shows all of them.
title-field	string		API name of the field shown below the name, e.g. 'Title'.

Usage

Show the users of the org with their managers, photos and titles:

<c-org-chart-viewer
  chart-object-api-name="User"
  parent-field-api-name="ManagerId"
  title-field="Title"
  image-field="SmallPhotoUrl"
></c-org-chart-viewer>

In the Lightning App Builder, set the same values in the properties of the component, e.g. Contact with ReportsToId or Account with ParentId. On a record page of that object, the chart starts from the record of the page; Root Record Id sets another starting point.

Or pass your own hierarchy:

<c-org-chart-viewer records={employees} onnodeselect={handleNodeSelect}></c-org-chart-viewer>

Loading records

• The records are loaded with GraphQL, so no Apex is involved and users only see records and fields they have access to. Invalid object or field names are ignored instead of being sent.
• The chart needs one root. Records whose parent isn't loaded are roots; several roots get a shared top node named after the object, e.g. "Users". Records that can't be reached from a root, like those in a cycle, are left out.
• At most 2000 records are loaded; if there are more, the chart says so. Set a Root Record Id to show a part of a larger hierarchy.
• While the records load, a spinner shows; without records the chart says so, and errors are shown above it.
• A click on a loaded record, or Enter when it has the keyboard focus, opens its record page; the shared top node, the demo data and records set from outside don't navigate.
• Images are shown only from https:// or relative URLs. The PNG export shows the initials instead, because Salesforce doesn't allow reading images from its file domain for the export.

Events

Name	Detail	Description
nodeselect	{ record } - the record of the clicked node	Fired whenever a node in the chart is clicked, so a parent component can react to the selection. It is cancelable: preventDefault() keeps a loaded record from opening.

Custom Labels

The texts users see are Custom Labels, so they can be translated in Setup with the Translation Workbench. Copy them together with the component.

Name	Value
ErrorAlert_Error	Error
ErrorUtils_UnknownError	Unknown error
OrgChartViewer_CollapseAll	Collapse All
OrgChartViewer_ExpandAll	Expand All
OrgChartViewer_ExportPng	Export PNG
OrgChartViewer_FitToScreen	Fit to Screen
OrgChartViewer_LibraryNotLoaded	Failed to load chart library:
OrgChartViewer_Loading	Loading the org chart...
OrgChartViewer_NodeCount	Showing {0} of {1} nodes
OrgChartViewer_NoRecords	No records found.
OrgChartViewer_OnlyFirstRecords	Only the first {0} records are shown.
OrgChartViewer_OpenRecord	Open
OrgChartViewer_RecordsNotLoaded	The records could not be loaded:
OrgChartViewer_Search	Search
OrgChartViewer_SearchPlaceholder	Search by name...
OrgChartViewer_Title	Org Chart Viewer
OrgChartViewer_Unknown	Unknown

Component Dependencies

Name	Type	Description
d3orgchart	Static Resource	d3 v7 + d3-flextree + d3-org-chart - Libraries for rendering interactive organization charts.
errorAlert	LWC	Inline alert that shows error messages to the user.
errorUtils	LWC	Shared functions to read error messages and show error toasts.
labelUtils	LWC	Shared function to fill the placeholders of Custom Labels.
